8HP Water-cooled Condensing Unit 380V 50HZ for Cold Storage
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Spanning | 380V 50Hz | Koelcapaciteit | medium hoge temperatuur |
|---|---|---|---|
| Koelmiddel | R404A, R404A | Temperatuurbereik | +10 tot -20 |
| Gewicht | 250 kg | Compressortype | Scroll, scrollcompreser |
| Compressormodel | ZB58KQE | Compressor HP | 8 pk |
| Type condensator | shell en tube condensor | Druk | 16kg |
| Schijfkast | Opgenomen | Filterdroger | Kubus |
| Magneetklep | Opgenomen | drukcontrolemechanisme | P830e |
| oliemaat | Hoog en laag | ||
| Markeren | 8HP water-cooled condensing unit,380V cold storage condenser,50Hz refrigeration condensing unit |
||
Productomschrijving

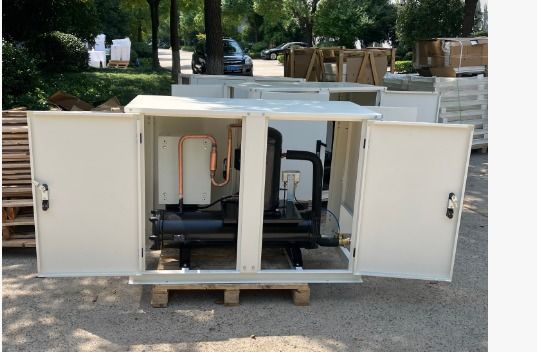

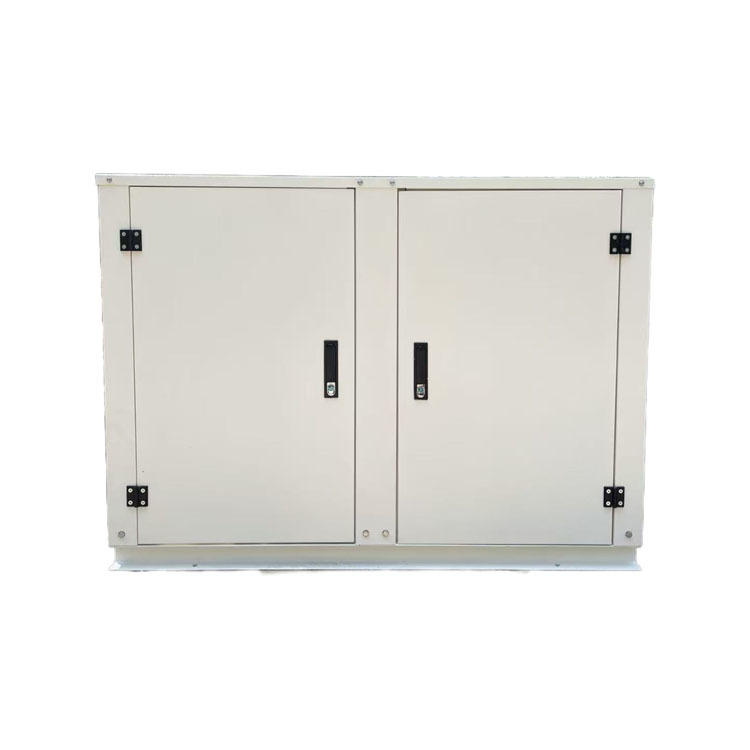

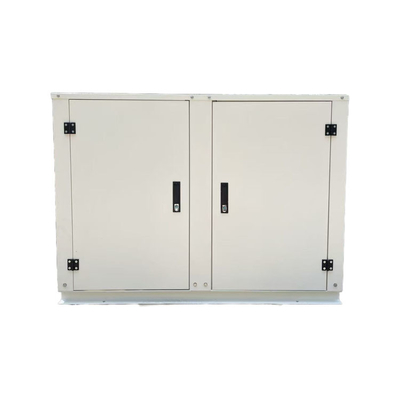

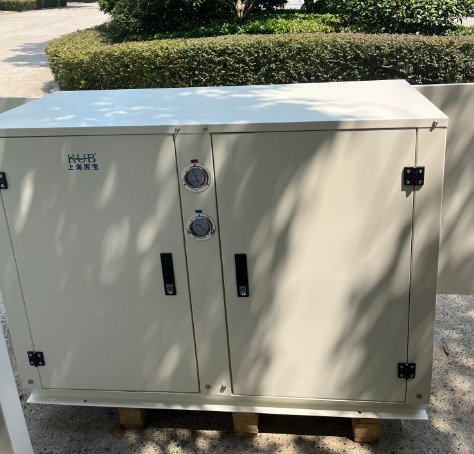

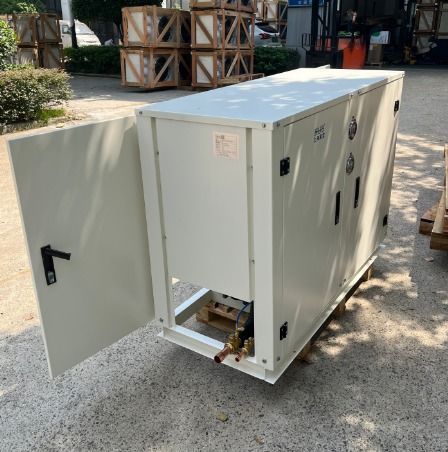

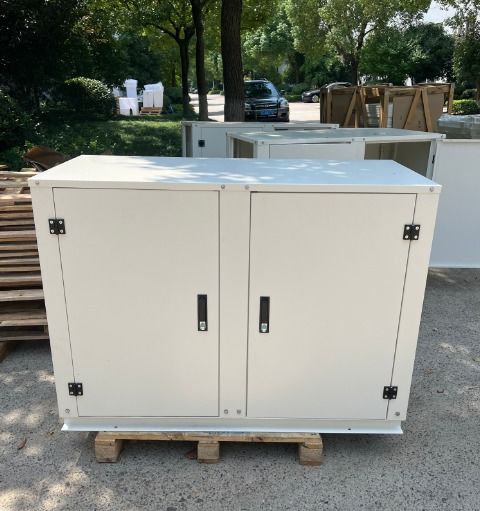

8HP Water-cooled Refrigeration Unit with Sheet Metal Copeland Compressor Condensing Unit With Control Box for Cold Room
This 8HP water-cooled condensing unit from KUB Company is designed for medium temperature cold storage applications. Featuring a ZB58KQE-TFD-558 Copeland compressor using R404A refrigerant, the unit operates at 16KG pressure with stable and reliable performance.
Technical Specifications
| Component | Model/Type | Quantity |
|---|---|---|
| Compressor | ZB58KQE-TFD-558 | 1 |
| Box-type sheet metal | - | 1 |
| Ball valve | - | 2 |
| Water cooled condenser | Shell and tube water condenser 8HP | 1 |
| Filter drier (KUB) | - | 1 |
| Solenoid valve | - | 1 |
| Pressure controller | P830E | 1 |
| Oil gauge (high) | - | 1 |
| Oil gauge (Low) | - | 1 |
| Control box | - | 1 |

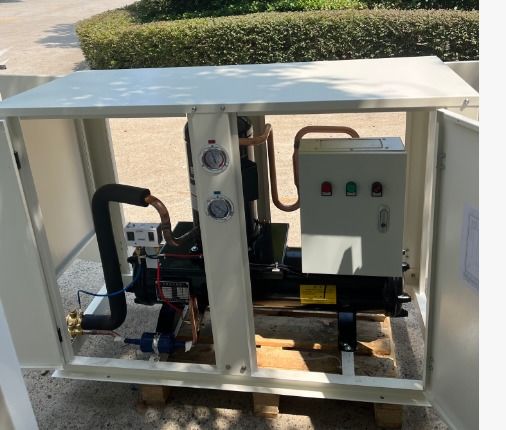

The complete system includes shell and tube condenser, filter drier, solenoid valve, and control box with all wiring pre-configured for easy installation.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the authorized agent for compressors and manufacturers of condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping options include express, air freight, and sea freight.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Typical lead time is 35-60 days after payment. Primary loading port is Shanghai, with other Chinese ports available upon request.
Q5: Can I have a sample first?
A5: Samples are available with payment of sample cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL or FCL by sea, air, or express. Transit times are approximately 30 days by sea, 5-7 days by air/express.
Packaging & Shipping
Customization & Warranty
- Custom designs available for refrigeration, cold storage, agriculture, food service, and chemical applications
- Comprehensive 1-year warranty coverage
- Quality guarantee with full responsibility for product performance
