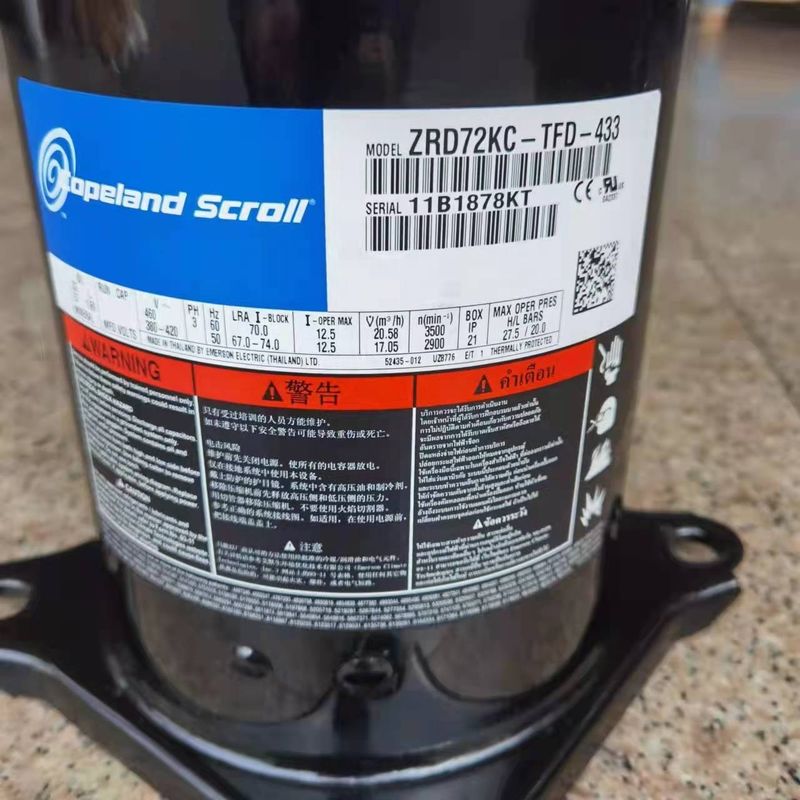

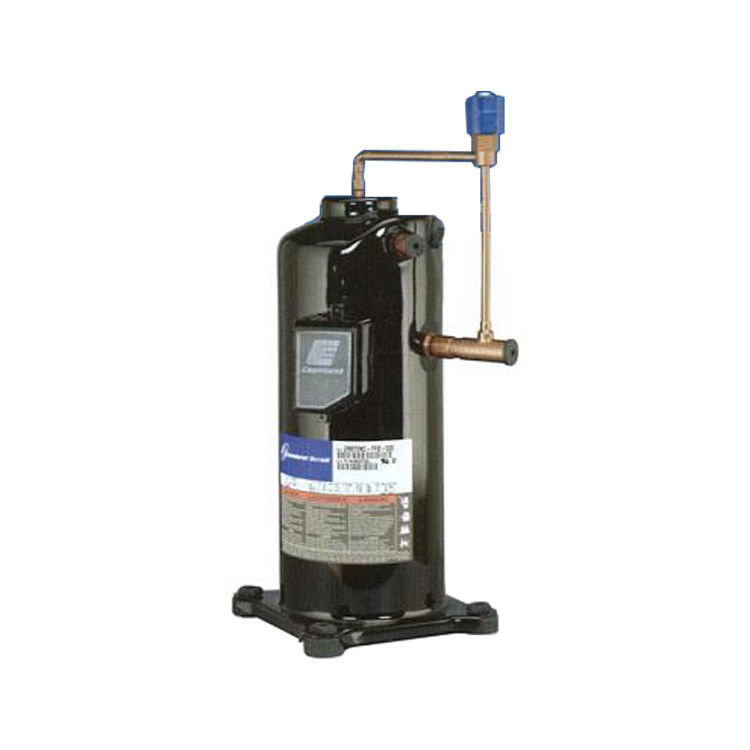

ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor

Plaats van herkomst Shanghai, China
Merknaam KUB
Certificering CE
Modelnummer ZRD72KC
Min. bestelaantal 20
Prijs Consult
Verpakking Details Pallet verpakking
Levertijd 20days
Betalingscondities L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen 1000 Stuk/Stukken per Jaar

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Voeding 380-420v 3ph 50hz Compressortype Hermetische compressor
Structuurtype Horizontaal Koelmiddel R22
Het koelen capaciteit 17600 Macht 5330
Beproevingsomstandigheden A
Laat een bericht achter
Productomschrijving

ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor



Model Horsepower Cooling capacity Input power Current COP EER
W Btu/h W A W/W (Btu/Wh)
ZRD72KC TFD 17600  60200  5330  9.6  3.31  11.3
Model Refrigerant Displacement Filling oil N.W Stall current Noise Voltage
(cc/Rev) L kg A dBA
ZRD72KC TFD R22 98.1  1.89  39.9  74  71  380-420v 3ph 50hz




Copeland scroll compressors are perfect for split, rooftop, unit and chiller systems.
Copeland digital scroll compressors provide infinite capacity adjustment for air conditioning applications and are suitable for R22, R407C and R410A refrigerants.
In many refrigeration and heating system applications, the load and operating conditions of the system vary over a wide range, and at this time, adjustable capacity output is necessary. Copeland Digital Scroll is a simple and reliable compressor solution with energy output adjustable down to 10% of nominal cooling capacity, meeting multiple requirements for precise temperature and humidity control, comfort and energy savings.

Copeland digital scroll compressors are perfect for VRF multi-line, rooftop, chiller and process cooling.
