R404a Vakje Type Airconditioningseenheden die Aanpassings Explosiebestendige type energieregelgeving ontdooien

Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xType | Compressor, condenserende eenheid | Verleende naverkoop de dienst | Ingenieurs beschikbaar aan de dienstmachines overzee |
---|---|---|---|
Koelmiddel | R404a | Het koelen Capaciteit | Van 1800W aan 95600W |
Voltage | 380V/3PH/50Hz | TOEPASSING | De koude Zaal van de Bergruimtediepvriezer |
Markeren | Doostype Airconditioningseenheden,R404a Airconditioningseenheden,De ontdooiende Eenheden van de Aanpassingsairconditioning |

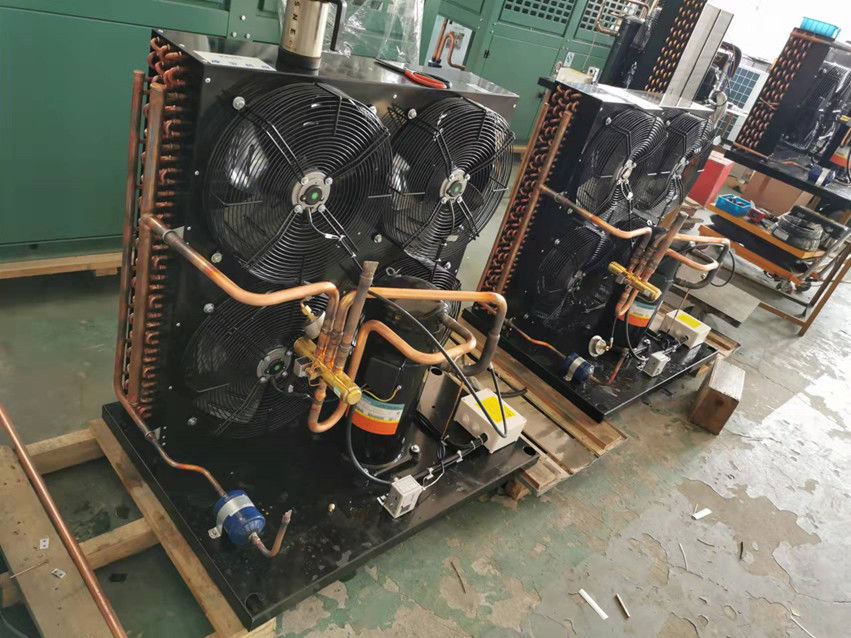

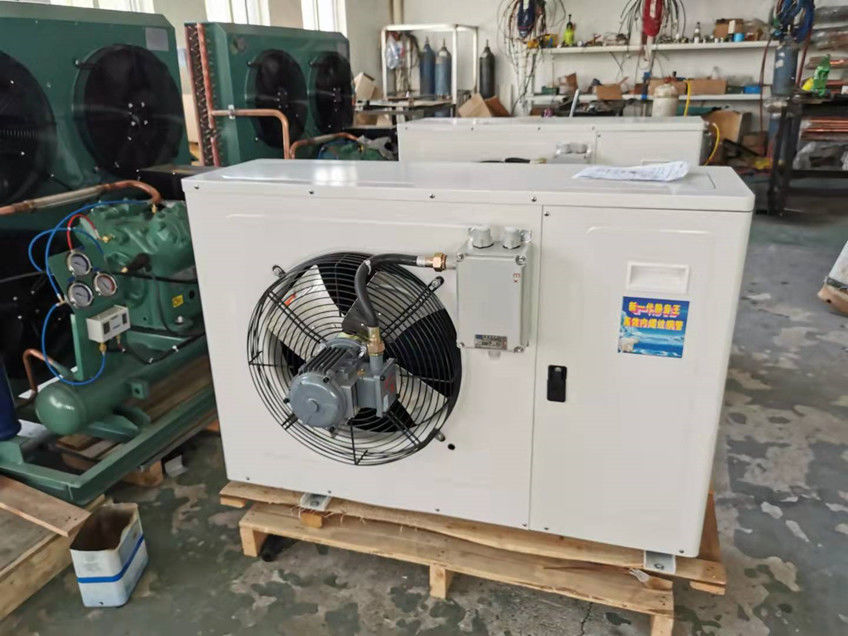

XJQ - e-het Type van Reeksdoos Condenserende Eenheden
1. Productomschrijving:
Volgens eisen van markt, ontwerpen wij deze nieuwe reeks xjq-e over basis van XJQ-reeks. Deze kenmerken de nieuwe reeksproducten doostype structuur met hermetische compressor en controledoos, die het Compacte en prettige kijken, van toepassing is op koude vitrines, koude bergruimten, ijsproducenten enz. De toepasselijke temperatuurwaaiers zijn: - 5C~ 15°C, -5°C~5°C en -15~-25°C. Zij kunnen bewidely gebruikt in hotels, restaurants, geneesmiddelen, ltural agricu, chemische producten i ndustries al andere plaats waar de koude opslag nodig is. Eigenschappen van deze reeksproducten:
◆De elektrische componenten werden toegevoegd op basis van oude XJQ-reeks, induding condenserende eenheid, hoofdcontroleraad, koude roomtemp controleraad en verrichtingsraad. De de controleraad van koude ruimtetemperaturen en de verrichtingsraad zijn facultatief.
◆De hoofdcontroleraad kan beginnen/houdt compressor door systeem tegen het lage voltage, voor supermarkt, melkcontainer, water koelere enz. geschikt is. Als alle facultatieve inbegrepen, systeem compressor door tem p. kan controleren, met functie van temperaturen. en ontdooiende aanpassing. De volledige reeks van controlesysteem kan voor koude ruimte direct worden gebruikt, vereiste geen extra controlemechanisme.
◆Met multibescherming die fasebescherming, fasegebrek, over huidig, te constant begin van compressor, hoge lossingstemperaturen en systeem incuding - lage temperaturen.
◆Met de regelgever van de ventilatorsnelheid, om condenserende ventilator aan te passen volgens het condenseren van temperaturen.
◆Met verrichting tonen de gegevens functie, om verrichtingsstroom van compressor te controleren, lossingstemperaturen. en het condenseren temperaturen.
◆Met de functie van het systeemalarm. Wanneer de foutengevolgen, het systeem zullen maken piepergeluid alarmeren om gebruiker eraan te herinneren.
◆De verrichtingsraad kan temperaturen tonen. het plaatsen, ontdooiende controle, de gegevens van het verrichtingssysteem het controleren en koude ruimtetemperaturen. alarmfuncties. Het kan behalve het condenseren van eenheden voor afstandsbediening worden geïnstalleerd.
3. Belangrijkste onderdelen
①Compressor② zuiging en van de uitlaatkleppen③ olie het verwarmen van het de ontvangers⑥ Drier&filter ⑦ gezicht van de riem④ condensator ⑤ verbeterde de vloeibare van de de glazen⑧ solenoïde het type van de klep⑨ dia phragm van de de drukmaat ① in/out van de drukschakelaar OH/L van de de pijpverbinding valve12 liquidinjectionklep ③ mechanische het type van gasinjectie ④ laag voltagecontrole
XJQ02H - XJQ05H: Punt①. ④. ⑤. ⑥. ⑦. ⑧. ⑨. D.O; facultatief: ④
XJQ08H - XJQ15H: ltem①. ②. ③. ④. ⑤. ⑥. ⑦. ⑨. 面; facultatief: ④
XJQ02M - XJQ07M: Punt①. ④. ⑤. ⑥. ⑦. ⑧. ⑨. D. ①; facultatief: ④
XJQ08M - XJQ15M: Punt①. ② ③. ④. ⑤. ⑥. ⑦. ⑧. ⑨. O; optionalI
XJQ02L-XJQ07L: Punt①. ②. ③. ④. ⑤. ⑥. ⑦. ⑧. ⑨ .0. ①. ;
XJQ05L-XJQ15L: Punt①. ②. ③. ④. ⑤ ⑥. ⑦. ⑧. ⑨ .0. ; facultatief: ④
Voor het condenseren van eenheden zonder solenoïdeklep, stellen wij gebruiker voor om solenoïdeklep dichtbij uitbreidingsklep te installeren.
Bericht: De tevreden uitgezochte s-motor van de evaporatorventilator met 220V-voeding.
Model | Xjq02hag-e | XJQ03HAG - E | Xjq04hag-e | Xjq05hag-e | ||
Kamertemperatuur (℃) | 5℃ ~15 ℃ | |||||
Voeding | 380V/3Ph/50 Herz | |||||
Koelmiddel | R22 | |||||
Compressormodel | ZB15KQ | ZB21KQ/ZR36 | ZB .29KQ/ZR47 | ZB38KQ/VR61 | ||
Condensator | Ventilator Qty | 1 | 1 | 2 | 2 | |
Ventilatorvoltage (V) | 220 | 220 | 220 | 220 | ||
Ventilatorinput (W) | 60 | 60 | 60×2 | 60×2 | ||
Cap.& input | Te 5℃ | GLB (w) | 5770 | 8400 | 11300 | 14000 |
input (W) | 1560 | 2300 | 2930 | 3700 | ||
Te 0℃ | GLB (w) | 4830 | 7020 | 9430 | 11700 | |
input (W) | 1540 | 2270 | 2890 | 3660 | ||
Pijp | Gasdia (mm) | 19 | 19 | 19 | 19 | |
Vloeibare dia (mm) | 10 | 10 | 12 | 12 | ||
Globaal grootte |
L (mm) | 1020 | 1020 | 1020 | 1020 | |
w (mm) | 420 | 420 | 420 | 420 | ||
H (mm) | 840 | 840 | 1240 | 1240 | ||
lnstall grootte (A×B) (mm) | 580×380 | 580×380 | 580×380 | 580×380 | ||
Totale grootte | A |
Model | Xjq08hbg-e | XJQ09 HBG-E | xJQ10HBG - E | xJQ12HBG-e | xJQ13HBG - E | Xjq15hbg-e | |||
Kamertemperatuur (℃) | 5~15 ℃ | ||||||||
Voeding | 380V/3Ph/50Hz | ||||||||
Koelmiddel | R22 | ||||||||
Compressormodel | ZB58KQ/VR94 | ZB66KQ/VR108 | ZB76KQ/VR125 | ZB88KQ/VR144 | ZB95KQ/VR160 | ZB114KQ/VR190 | |||
Condensator | Ventilator Qty | 1 | 2 | 2 | 2 | 2 | 2 | ||
Ventilatorvoltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | |||
Ventilatorinput (W) | 550 | 460×2 | 460×2 | 460×2 | 550x2 | 550×2 | |||
Cap.& input | Te 5℃ | GLB (w) | 22400 | 25300 | 29700 | 34000 | 36300 | 43600 | |
input (w) | 550o | 6140 | 7260 | 8220 | 9290 | 11000 | |||
Te 0℃ | GLB (W) | 18550 | 21100 | 24900 | 28500 | 30200 | 36200 | ||
input (w) | 5470 | 6070 | 7180 | 8130 | 9200 | 10900 | |||
Pijp | Gasdia. (mm) | 28 | 28 | 28 | 28 | 28 | 28 | ||
Vloeibare dia. (mm) | 16 | 16 | 16 | 16 | 16 | 16 | |||
Overallsizes | L (mm) | 967 | 1354 | 1354 | 1354 | 1870 | 1870 | ||
w (mm) | 825 | 825 | 825 | 825 | 925 | 925 | |||
H (mm) | 1035 | 1025 | 1025 | 1025 | 1035 | 1035 | |||
lnstall grootte (A×B) (mm) | 570X785 | 950×785 | 950×785 | 950×785 | 755×885 | 755x885 | |||
Totale grootte |
Opmerking: 1) Het koelen capaciteit bij het condenseren van temperaturen. 45°C; 2) 220V/50Hz de machtsmodellen zijn beschikbaar voor 2HP~4HP-eenheden, waarvan ZB26KQ voor 4 HP zal worden gebruikt de modelevaporator van units.3) de motor van de de enige faseventilator van 220V moet gebruiken.
Model | XJQ02MAG - E | XJQ03MAG - E | XJQ04MAG - E | XJQ05MAG - E | Xq06mag-e | XQ07MAG - E | ||
Kamertemperatuur (℃) | -5C ~5 ℃ | |||||||
Voeding | 380V/3Ph/50 Herz | |||||||
compressormodel | ZB15KQ | ZB21KQ | ZB29KQ | ZB38KQ | ZB45KQ | ZB48KQ | ||
Condensator | Ventilator Qty | 1 | 1 | 1 | 2 | 2 | 2 | |
Ventilatorvoltage (v) | 220 | 220 | 220 | 220 | 220 | 220 | ||
Ventilatorinput (W) | 60 | 60 | 60 | 60×2 | 60×2 | 60×2 | ||
Cap.& input | Te -5℃ | GLB (w) | 4000 | 5820 | 7810 | 9710 | 11750 | 12950 |
Input (w) | 1520 | 2240 | 2860 | 3610 | 4210 | 4630 | ||
Te -7℃ | GLB (w) | 3690 | 5370 | 7220 | 8970 | 10900 | 12000 | |
Input (w) | 1510 | 2230 | 2840 | 3590 | 4200 | 4620 | ||
Te -10℃ | GLB (w) | 3260 | 4740 | 6380 | 7920 | 9640 | 10600 | |
Input (w) | 1510 | 2220 | 2830 | 3580 | 4180 | 4590 | ||
Pijp | Gasdia. (mm) | 19 | 19 | 19 | 19 | 19 | 19 | |
Vloeibare dia. (mm) | 10 | 10 | 12 | 12 | 12 | 12 | ||
overallsizes | L (mm) | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 | |
w (mm) | 420 | 420 | 420 | 420 | 420 | 420 | ||
H (mm) | 840 | 840 | 840 | 1240 | 1240 | 1240 | ||
lnstall grootte (A×B) (mm) | 580×380 | 580×380 | 580×380 | 580×380 | 580×380 | 580×380 | ||
Algemene slzes |
Model | XJQ08MBG - E | Xjq09mbg-e | XJQ10MBG - E | XJQ12MBG - E | Xjq13mbg-e | Xjq15mbg-e | ||
Kamertemperatuur | -5℃ ~5℃ | |||||||
Voeding | 380V/3Ph/50Hz | |||||||
compressormodel | Z858KQ | ZB66KQ | ZB76KQ | ZB88KQ | ZB95KQ | ZB114KQ | ||
Condensator | Ventilator Qty | 1 | 1 | 1 | 1 | 2 | 2 | |
Ventilatorvoltage (v) | 380 | 380 | 380 | 380 | 380 | 380 | ||
Ventilatorinput (W) | 550 | 550 | 550 | 550 | 460×2 | 460×2 | ||
GLB. & input | Te -5℃ | ap (w) | 15100 | 17450 | 20600 | 23500 | 24700 | 29500 |
lnput (w) | 5460 | 6030 | 7130 | 8070 | 9110 | 10800 | ||
Te -7℃ | GLB (w) | 13850 | 16150 | 19050 | 21700 | 22500 | 27000 | |
Input (w) | 5460 | 6010 | 7110 | 8050 | 9060 | 10750 | ||
Te -10℃ | GLB (w) | 12000 | 14250 | 16850 | 19100 | 19500 | 23300 | |
lnput (w) | 5470 | 5990 | 7070 | 8010 | 8990 | 10750 | ||
Pijp | Gasdla. (mm) | 28 | 28 | 28 | 28 | 28 | 28 | |
Vloeibare dia. (mm) | 16 | 16 | 16 | 16 | 16 | 16 | ||
overallsizes | L (mm) | 967 | 967 | 967 | 967 | 1354 | 1354 | |
w (mm) | 825 | 825 | 825 | 825 | 825 | 825 | ||
H (mm) | 1035 | 1035 | 1035 | 1035 | 1025 | 1025 | ||
Installeer slzes (A×B) (mm) | 570×785 | 570×785 | 570×785 | 570×785 | 950×785 | 950×785 | ||
Totale grootte |
Opmerking: 1) Het koelen capaciteit bij het condenseren van temperaturen. 45°C; 2) 220V/50Hz de machtsmodellen zijn beschikbaar voor 2HP~4HP-eenheden, van whichZB26KQ de gebruikte modeleenheden van for4 HP zal zijn. 3) De evaporator moet mo van de de enige faseventilator van 220V gebruiken piek.
Model | XJIQ02MAGY - E | XJQ03MAGY - E | XJQ04MAGY - E | XJIQ05MAGY - E | XJQ06MAGY - E | XJQ07MAGY - E | ||
Kamertemperatuur | -15℃ ~5℃ | |||||||
Voeding | 380V/3Ph/50 Herz | |||||||
compressormodel | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ZB45KQE | ZB48KQE | ||
Condenseer | Ventilator Qty | 1 | 1 | 1 | 2 | 2 | 2 | |
Ventilatorvoltage (v) | 220 | 220 | 220 | 220 | 220 | 220 | ||
Ventilatorinput (w) | 60 | 60 | 60 | 60×2 | 60×2 | 60×2 | ||
GLB. & input | Te-5°℃ | GLB (w) | 3820 | 5740 | 7790 | 9830 | 11500 | 12550 |
lnput (w) | 1760 | 2500 | 3310 | 4180 | 4730 | 5210 | ||
Te-10℃ | GLB (w) | 3080 | 4680 | 6360 | 8020 | 9380 | 10200 | |
lnput (w) | 1820 | 2510 | 3330 | 4200 | 4750 | 5230 | ||
Te-15℃ | GLB (w) | 2430 | 3780 | 5130 | 6480 | 7580 | 8180 | |
Input (w) | 1880 | 2510 | 3330 | 4210 | 4760 | 5240 | ||
Te-20℃c | GLB (w | 1870 | 3020 | 4100 | 5170 | 6050 | 6490 | |
Input (w) | 1930 | 2520 | 3340 | 4210 | 4770 | 5240 | ||
Pijp | Gasdia. (mm) | 19 | 19 | 19 | 19 | 19 | 19 | |
vloeibare dia. (mm) | 10 | 10 | 12 | 12 | 12 | 12 | ||
overallslzes | L (mm) | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 | |
w (mm) | 420 | 420 | 420 | 420 | 420 | 420 | ||
H (mm) | 840 | 840 | 840 | 1240 | 1240 | 1240 | ||
Installeer grootte (A×B) (mm) | 580×380 | 580×380 | 580×380 | 580×380 | 580×380 | |||
algemene slzes | A |
Model | XJQ08 MBGY-E XJQ09MBGY-E | xJQ10MBGY - E | XJQ13MBGY - E | XJQ15MBGY - E | |||
Kamertemperatuur | -15℃ ~5℃ | ||||||
Voeding | 380V/3Ph/50Hz | ||||||
compressormodel | ZB58KQE | ZB66KQE | ZB76KQE | ZB95KQE | ZB114KQE | ||
Condenseer | Ventilator Qty | 1 | 1 | 1 | 2 | 2 | |
Ventilatorvoltage (v) | 380 | 380 | 380 | 380 | 380 | ||
Ventilatorinput (w) | 550 | 550 | 550 | 460×2 | 460×2 | ||
GLB. & input | Te-5℃ | GLB (w) | 15300 | 17100 | 20400 | 2500o | 29700 |
Input (w) | 6360 | 7090 | 8290 | 10700 | 12650 | ||
Te-10℃ | GLB (w) | 12400 | 14000 | 16600 | 20300 | 24000 | |
lnput (w) | 6320 | 7050 | 8220 | 10600 | 12650 | ||
Te-15℃ | GLB (w) | 9480 | 11300 | 13350 | 16100 | 18900 | |
Input (w) | 6320 | 7020 | 8150 | 10600 | 12650 | ||
Te-20℃ | GLB (w) | 7520 | 9o0o | 10550 | 12200 | 14350 | |
Input (w) | 6360 | 6980 | 8100 | 10600 | 12650 | ||
Pijp | Gasdia. (mm) | 28 | 28 | 28 | 28 | 28 | |
Llqulddla. (mm) | 16 | 16 | 16 | 16 | 16 | ||
overallsizes | L (mm) | 967 | 967 | 967 | 1354 | 1354 | |
w (m m) | 825 | 825 | 825 | 825 | 825 | ||
H (mm) | 1035 | 1035 | 1035 | 1025 | 1025 | ||
lnstal grootte (A×B) (mm) | 570×785 | 570×785 | 570×785 | 950×785 | 900×785 | ||
totale grootte | B |
Opmerking: 1) het Koelen capaciteit bij het condenseren van temperaturen. 45 ℃; 2) 220V/50Hz de machtsmodellen zijn beschikbaar voor 2HP~4HP-eenheden, van whichZB26KQ zal voor 4 modeleenheden van HP worden gebruikt. 3) De evaporator moet de motor van de de enige faseventilator van 220V gebruiken.
Model | XJQ02LAG - E | XJQ03LAG - E | XJQ04LAG - E | xJQ05LBG - E | Xjq06lbg-e | Xjq08lbg-e | ||
Kamertemperatuur | -18℃ ~-20℃ | |||||||
Macht supp ly | 380V/3Ph/50Hz | |||||||
compressormodel | ZF06KQ | ZF09KQ | ZF11KQ | ZF15KQ | ZF18KQ | ZF25KQ | ||
Condenseer | Ventilator Qty | 1 | 1 | 1 | 1 | 1 | 1 | |
Ventilatorvoltage (v) | 220 | 220 | 220 | 220 | 220 | 220 | ||
Ventilatorinput (w) | 60 | 60 | 60 | 60x2 | 60x2 | 60x2 | ||
GLB. & input | Te -25℃ |
GLB (w) | 2250 | 2980 | 3870 | 5630 | 6810 | 7640 |
Input (w) | 1600 | 2020 | 2430 | 3350 | 4200 | 4600 | ||
Te -30℃ |
GLB (w) | 1820 | 2380 | 3160 | 4600 | 5560 | 6260 | |
Input (w) | 1570 | 1980 | 2370 | 3250 | 4110 | 4490 | ||
Te -35℃ |
GLB (w | 1480 | 1870 | 2520 | 3670 | 4500 | 5010 | |
Input (w) | 1590 | 1960 | 2300 | 3170 | 4020 | 4380 | ||
Pijp | Gasdla (mm) | 19 | 19 | 19 | 22 | 22 | 22 | |
Llquiddia (mm) | 10 | 10 | 10 | 12 | 12 | 12 | ||
globaal grootte |
L (mm) | 1020 | 1020 | 1020 | 1020 | 1020 | 967 | |
w (mm) | 420 | 420 | 420 | 420 | 420 | 675 | ||
H (mm) | 840 | 840 | 840 | 1240 | 1240 | 815 | ||
Installeer grootte (A×B) (mm) | 580×80 | 580×380 | 580×380 | 580×380 | 580×380 | 570×635 | ||
totale grootte | A | B |
Model | Xjq08lbg-e | Xjq12lbg-e | Xjq13lbg-e | Xjq15lbg-e | ||
Temperatuur (℃) | -18℃ ~-30℃ | |||||
Voeding | 38oV/3Ph/50 Herz | |||||
Compressormodel | QF125A | QF175A | QF185A | QF205A | ||
Condenseer | Ventilator Qty | 1 | 1 | 1 | 1 | |
Ventilatorvoltage (v | 220 | 220 | 220 | 220 | ||
Ventilator lnput (w | 550 | 550 | 550 | 550 | ||
GLB. & input | Te -25℃ |
GLB (w) | 8200 | 1000o | 11800 | 13400 |
lnput (w) | 5000 | 6200 | 7400 | 8300 | ||
Te -30℃ |
GLB (w) | 6500 | 8100 | 9600 | 11000 | |
lnput (w) | 4800 | 6000 | 7000 | 7900 | ||
Te -35℃ |
GLB w) | 5000 | 6500 | 7700 | 8900 | |
lnput (w) | 4700 | 5800 | 6600 | 7500 | ||
Te -40℃ |
GLB (w) | 3700 | 5200 | 6100 | 7000 | |
lnput (w> | 4600 | 5600 | 6200 | 7200 | ||
Pijp | Gasdia (mm) | 28 | 28 | 28 | 28 | |
Vloeibare dia (mm> | 16 | 16 | 16 | 16 | ||
Globaal sizer |
L (mm) | 967 | 967 | 967 | 967 | |
w (mm) | 825 | 825 | 825 | 825 | ||
H (mm) | 1035 | 1035 | 1035 | 1035 | ||
lnstall grootte (A×B) (mm) | 570×785 | 570×785 | 570×785 | 570×785 | ||
0verall grootte | B 型 |
Model | XJQ02LAGY - E | Xjq03lagy-e | XJQ04LAGY - E | Xjq05lbgy-e | XJQ06LBGY - E | XJQ08LBGY - E | ||
Kamertemperatuur | -18℃ ~-20 ℃ | |||||||
Machtssup vouw | 380V/3Ph/50HZ | |||||||
compressormodel | ZSI06KQE | ZS109KQE | ZS111KQE | ZS115KQE | ZSI18KQE | ZSI21KQE | ||
Condensator | Ventilator Qty | 1 | 1 | 2 | 2 | 2 | ||
Ventilatorvoltage (v) | 220 | 220 | 220 | 220 | 220 | 220 | ||
Ventilatorinput (W) | 60 | 60 | 60 | 60x2 | 60x2 | 60x2 | ||
GLB. & input | Te-25c | GLB (w) | 2320 | 3270 | 4140 | 5930 | 7220 | 805o |
Input (w) | 1760 | 2260 | 2640 | 3580 | 4430 | 4890 | ||
Te-30℃ | GLB (W) | 1870 | 2640 | 3350 | 4820 | s900 | 6580 | |
Input (w) | 1730 | 2210 | 2580 | 3520 | 4290 | 4730 | ||
Te-35℃ | ap (W) | 1500 | 2070 | 2620 | 3780 | 4770 | 5340 | |
Input (w) | 1700 | 2120 | 2450 | 3500 | 4200 | 4600 | ||
pijp | Gasdia. (mm) | 19 | 19 | 19 | 19 | 19 | 19 | |
Vloeibare dia. (mm) | 10 | 10 | 10 | 12 | 12 | 12 | ||
overallsizes | L (mm) | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 | |
w (mm) | 420 | 420 | 420 | 420 | 420 | 420 | ||
H (mm) | 840 | 840 | 840 | 1240 | 1240 | 1240 | ||
Installeer grootte (A×B) (mm) | 580x380 | 580x380 | 580x80 | 580×380 | 580x380 | 580x380 | ||
globaal slizes | A | B |
Opmerking: Het koelen capaciteit bij het condenseren van temperatuur 45℃, insuctiontemperatuur 18℃; 2) 2HP-het model is availiable220V/50HZ-macht; 3) de Facultatieve evaporator moet 220V-ventilatormotor gebruiken.
Model | Xjg08lbgy-e | Xjq12lbgy-e | Xjq13lbgy-e | Xjq15lbgy-e | ||
Temperatuur (℃) | -18℃ ~-30 ℃ | |||||
Voeding | 380V/3Ph/50HZ | |||||
compressormodel | QF125AE | QF175AE | QF185AE | QF205AE | ||
Condensator | Ventilator Qty | 1 | 1 | 1 | 1 | |
Ventilatorvoltage (m) | 220 | 220 | 220 | 220 | ||
Ventilator lnput (w) | 550 | 550 | 550 | 550 | ||
GLB. & input | Te-25℃ | GLB (w) | 9400 | 11100 | 12400 | 14200 |
lnput (w) | 5800 | 6900 | 7800 | 9200 | ||
Te-30℃ | GLB (w) | 7700 | 8800 | 10200 | 11600 | |
Input (w) | 5600 | 6600 | 7500 | 8700 | ||
Te-35℃ | GLB (w) | 6200 | 7300 | 8400 | 9500 | |
Input (w) | 5400 | 6300 | 7200 | 8400 | ||
Te-40℃ | GLB (w) | 4800 | 6800 | 7000 | 7900 | |
lnput (w) | 510000 | 6100 | 7000 | 8200 | ||
pijp | Gasdia (mm) | 28 | 28 | 28 | 28 | |
Vloeibare dia (mm) | 16 | 16 | 16 | 16 | ||
overallsizer | L (mm) | 967 | 967 | 967 | 967 | |
w (mm) | 825 | 825 | 825 | 825 | ||
H (mm) | 1035 | 1035 | 1035 | 1035 | ||
lnstall grootte (A×B) (mm) | 570×785 | 570×785 | 570×785 | 570×785 | ||
totale grootte |
Opmerking: Het koelen capaciteit bij het condenseren van temperatuur 45℃, insuctiontemperatuur 20℃; 2) de Evaporator moet 220V-ventilatormotor gebruiken.
