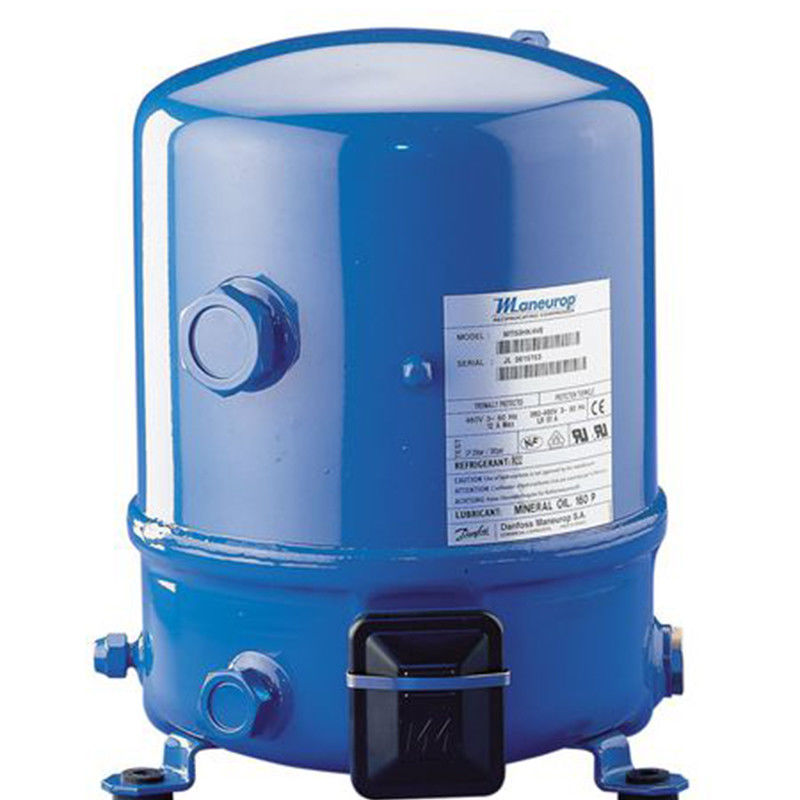

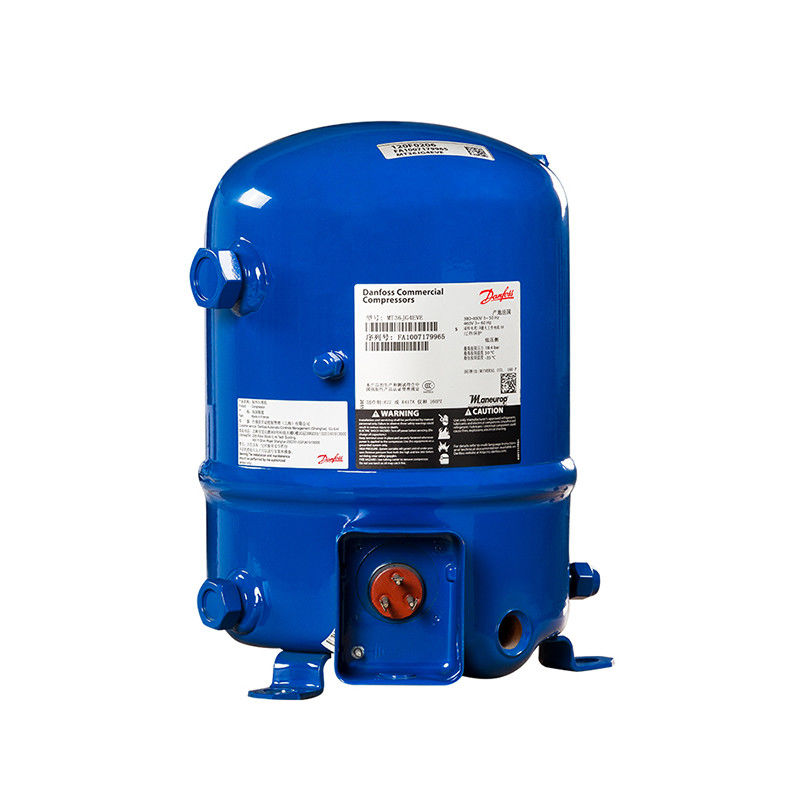

2m3/H verplaatsingsr22 Hermetische Compressor met 4 Cilinders

  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
Plaats van herkomst Shanghai, China
Merknaam Maneurop
Certificering CE
Modelnummer Beschrijf
Min. bestelaantal 1
Prijs Consult
Verpakking Details Pallet verpakking
Levertijd 20days
Betalingscondities L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen 1000 Stuk/Stukken per Jaar

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Koelmiddel R22 Kleur blauw
Cilindertelling 4 Gewicht [kg 2
Verplaatsing [m3/h 2 Garantie 1 jaar
Hoog licht

R22 Hermetische Compressor

,

2m3/H verplaatsings Hermetische Compressor

,

4 cilinders Hermetische Compressor
Laat een bericht achter
Productomschrijving
Mt125-4. Het koelen capaciteit [kW]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 8,795 11.71 15.22 19.42 24.39 30.19 36.92 44.65 53.46
35.0 7,858 10.65 14.01 18.02 22.76 28.30 34.73 42.12 50.56
40.0 6,998 9,650 12.83 16.63 21.12 26.37 32.48 39.51 47.54
45.0 6,226 8,714 11.70 15.26 19.47 24.42 30.17 36.82 44.43
50.0 　 7,853 10.62 13.92 17.83 22.45 27.83 34.07 41.24
55.0 　 　 9,596 12.62 16.22 20.47 25.46 31.27 37.97
60.0 　 　 　 11.37 14.63 18.50 23.08 28.43 34.64
65.0 　 　 　 　 13.07 16.55 20.69 25.56 31.25



Mt125-4. Machtsconsumptie [kW]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 4,821 5,395 5,939 6,430 6,848 7,172 7,381 7,453 7,367
35.0 5,081 5,689 6,276 6,822 7,305 7,705 7,999 8,168 8,189
40.0 5,301 5,950 6,588 7,196 7,752 8,234 8,622 8,894 9,030
45.0 5,476 6,173 6,870 7,547 8,182 8,754 9,243 9,626 9,884
50.0 　 6,352 7,115 7,868 8,590 9,259 9,856 10.36 10.74
55.0 　 　 7,316 8,153 8,969 9,743 10.45 11.08 11.60
60.0 　 　 　 8,396 9,313 10.20 11.03 11.79 12.46
65.0 　 　 　 　 9,617 10.62 11.59 12.49 13.30



Mt125-4. Het verwarmen capaciteit [kW]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 13.62 17.10 21.16 25.85 31.24 37.37 44.30 52.10 60.83
35.0 12.94 16.34 20.29 24.84 30.06 36.01 42.73 50.29 58.74
40.0 12.30 15.60 19.42 23.83 28.87 34.61 41.10 48.40 56.57
45.0 11.70 14.89 18.57 22.81 27.65 33.17 39.42 46.44 54.31
50.0 　 14.21 17.73 21.78 26.42 31.71 37.69 44.43 51.98
55.0 　 　 16. 91 20.77 25.18 30.22 35.92 42.35 49.57
60.0 　 　 　 19.76 23.94 28.70 34.11 40.23 47.10



Mt125-4. Huidig [A]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 8,575 9,272 9,982 10.66 11.26 11.74 12.05 12.15 11. 99
35.0 8,901 9,654 10.44 11.21 11.92 12.53 12.99 13.26 13.29
40.0 9,182 10.00 10.88 11.75 12.59 13.35 13.97 14.43 14.66
45.0 9,404 10.31 11.28 12.28 13.26 14.18 14.98 15.63 16.08
50.0 　 10.56 11.65 12.78 13.91 15.00 16.00 16.86 17.54
55.0 　 　 11. 95 13.24 14.54 15.81 17.01 18.10 19.02
60.0 　 　 　 13.63 15.11 16.59 18.01 19.33 20.52
65.0 　 　 　 　 15.64 17.32 18.98 20.55 22.01



Mt125-4. COP [W/W]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 1.82 2.17 2.56 3.02 3.56 4.21 5.00 5.99 7.26
35.0 1.55 1.87 2.23 2.64 3.12 3.67 4.34 5.16 6.17
40.0 1.32 1.62 1.95 2.31 2.72 3.20 3.77 4.44 5.26
45.0 1.14 1.41 1.70 2.02 2.38 2.79 3.26 3.83 4.50
50.0 　 1.24 1.49 1.77 2.08 2.42 2.82 3.29 3.84
55.0 　 　 1.31 1.55 1.81 2.10 2.44 2.82 3.27
60.0 　 　 　 1.35 1.57 1.81 2.09 2.41 2.78
65.0 　 　 　 　 1.36 1.56 1.79 2.05 2.35



Mt125-4. Massastroom [kg/u]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 191.5 251.5 322.7 406.5 504.2 616.9 745.9 892.5 1058
35.0 178.1 237.9 308.7 391.8 488.5 600.1 727.9 873.1 1037
40.0 165.4 224.7 294.6 376.5 471.7 581.7 707.6 850.9 1013
45.0 153.9 212.1 280.5 360.6 453.8 561.5 685.2 826.1 985.6
50.0 　 200.4 266.6 344.3 434.9 539.8 660.5 798.4 955.0
55.0 　 　 253.4 328.0 415.1 516.6 633.7 768.0 920.9
60.0 　 　 　 311.7 394.8 491.9 604.6 734.5 883.2
65.0 　 　 　 　 373.9 465.8 573.3 698.1 841.7



2m3/H verplaatsingsr22 Hermetische Compressor met 4 Cilinders 02m3/H verplaatsingsr22 Hermetische Compressor met 4 Cilinders 12m3/H verplaatsingsr22 Hermetische Compressor met 4 Cilinders 22m3/H verplaatsingsr22 Hermetische Compressor met 4 Cilinders 32m3/H verplaatsingsr22 Hermetische Compressor met 4 Cilinders 4
