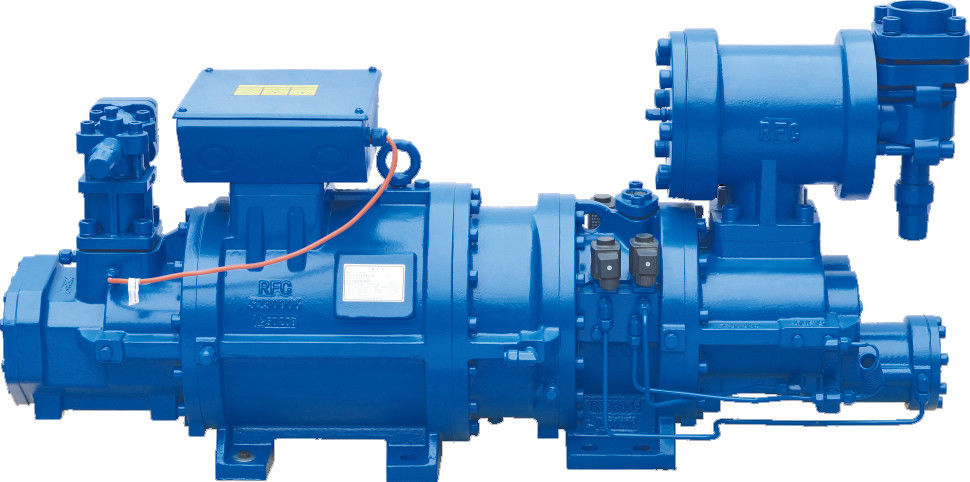

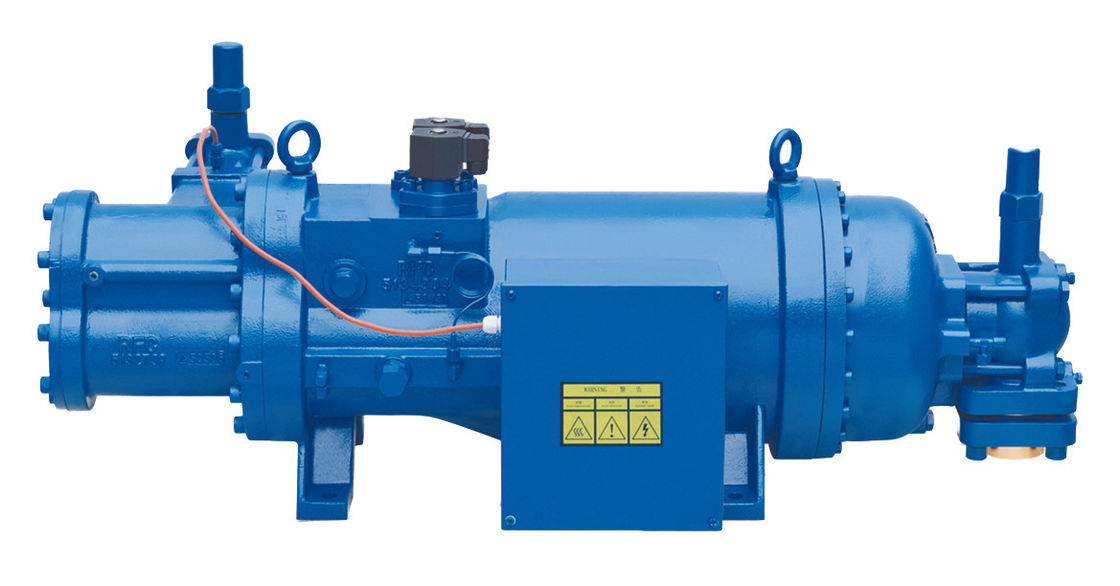

De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef

  • R22 R404A Screw Refrigeration Compressor 380V 145m3/H Displacement
  • R22 R404A Screw Refrigeration Compressor 380V 145m3/H Displacement
  • R22 R404A Screw Refrigeration Compressor 380V 145m3/H Displacement
Plaats van herkomst Shanghai, China
Merknaam KUB
Certificering CE
Modelnummer Beschrijf
Min. bestelaantal 1DAYS
Prijs Consult
Verpakking Details Pallet verpakking
Levertijd 15days
Betalingscondities L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen 1000 Stuk/Stukken per Jaar

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Standaardmotor 380V/3/50Hz-460/3/60Hz Koelmiddel R22/R404a
Kwaliteitsborging een Jaar Nominaal HP Beschrijf
Hoog licht

R22 de Compressor van de Schroefkoeling

,

De Compressor 380V van de schroefkoeling

,

145m3/H de Koelingscompressor van de verplaatsingsschroef
Laat een bericht achter
Productomschrijving



De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 0



Model SLG 100-35 120-40 140-50 190-65 210-70 230-80 290-100 320-110 350-120 370-130 420-145 470-160 520-180 570-195 640-210
Verplaatsing 50Hz m3/h 102 128 145 188 205 235 293 322 354 368 416 469 520 572 641
Nominale Motormacht Hp/kW 40/30 40/30 50/37 70/52 70/52 80/60 100/75 115/83 120/89 130/98 145/108 160/120 180/135 195/146 210/157
Gewicht Kg 245 245 255 405 410 420 535 540 545 665 675 710 1030 1050 1050
Interne lossingslijn, mm 45 45 45 57 57 57 57 57 57 76 76 76 76 76 76
Interne zuigingslijn, mm 57 57 57 76 76 76 89 89 89 89 89 89 108 108 108
Energieregelgeving 40%, 70%, 100%
Beschermingsmodule INT. 69 RCY
Standaardmotor 380V/3/50Hz-460/3/60Hz
Beginnende stroom A 134 134 139 193 193 298 338 354 366 453 453 543 595 678 767
A 134 134 182 139 193 338 318 318 354 374 453 543 595 595 595
Maximum werkende stroom A 56 60 78 104 109 126 158 175 187 206 228 253 284 308 331



De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 1De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 2







PRESTATIES SLG R22

SLG 100-35 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 42.5 17.4 40.1 19.2 37.4 21.6 34.3 21.9 30.8 24.3 — —
-15 52.2 17.6 49.2 19.2 45.9 21.6 42.2 22.4 38.2 24.9 — —
-10 63.5 17.7 60.0 19.4 56.1 21.7 51.9 22.9 47.5 25.4 38.2 31.1
-5 76.3 18.0 72.3 19.8 68.0 21.8 63.4 23.4 58.8 25.9 48.7 31.8
0 90.7 18.4 86.3 20.1 81.6 22.1 76.8 23.9 71.8 26.5 61.5 32.6
5 106.5 18.7 101.8 20.4 96.9 22.6 91.9 24.5 86.7 27.1 — —
10 — — 118.9 21.1 113.9 23.2 108.8 25.0 103.5 27.8 — —



SLG 100 -35 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 49.0 18.7 47.8 20.9 46.1 23.8 44.0 25.1 41.2 27.8 — —
-15 58.7 18.9 57.1 21.0 55.0 23.9 52.5 25.2 49.4 27.9 — —
-10 69.4 19.1 67.5 21.0 65.3 23.9 62.6 25.3 59.4 28.0 52.0 34.2
-5 81.2 19.1 79.3 21.2 76.9 24.0 74.2 25.6 71.1 28.1 64.0 34.6
0 94.0 19.2 92.0 21.3 89.6 23.9 87.1 25.8 84.3 28.2 77.8 34.8
5 107.4 19.3 109.6 21.5 106.6 24.1 101.2 26.0 98.6 28.4 — —
10 — — 126.7 22.1 124.7 24.3 120.6 26.6 114.1 28.6 — —



SLG 230 -80 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 99.8 40.9 94.2 45.1 87.8 50.8 80.5 51.5 72.5 57.2 — —
-15 122.8 41.4 115.7 45.1 107.8 50.8 99.2 52.5 89.9 58.4 — —
-10 149.3 41.6 140.9 45.6 131.7 51.0 122.0 53.8 111.7 59.6 89.7 73.2
-5 179.4 42.3 169.8 46.5 159.8 51.2 149.1 55.0 138.1 60.8 114.5 74.8
0 213.2 43.2 202.7 47.2 191.7 51.9 180.5 56.2 168.7 62.2 144.4 76.6
5 250.4 44.1 239.2 47.9 227.8 53.1 216.0 57.6 203.9 63.7 — —
10 — — 279.5 49.5 267.6 54.5 255.6 58.8 243.3 65.3 — —



SLG 230 -80 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 115.1 43.9 112.2 49.1 108.4 55.9 103.3 59.0 96.9 65.3 — —
-15 137.9 44.4 134.1 49.4 129.2 56.0 123.4 59.2 116.1 65.6 — —
-10 163.2 44.9 158.7 49.4 153.4 56.2 147.2 59.5 139.6 65.8 122.2 80.4
-5 190.9 44.9 186.2 49.8 180.7 56.3 174.3 60.2 167.2 66.0 150.4 81.3
0 220.8 45.1 216.1 50.1 210.6 56.1 204.7 60.6 198.0 66.3 182.9 81.8
5 252.3 45.4 257.6 50.5 250.5 56.6 237.7 61.1 231.8 66.7 — —
10 — — 297.7 51.9 293.0 57.1 283.4 62.5 268.2 67.2 — —



SLG120-40 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 51.8 21.2 48.9 23.4 45.6 26.4 41.8 26.8 37.6 29.7 — —
-15 63.7 21.5 60.0 23.4 56.0 26.4 51.5 27.3 46.7 30.3 — —
-10 77.5 21.6 73.1 23.7 68.4 26.5 63.3 27.9 58.0 31.0 46.6 38.0
-5 93.1 22.0 88.2 24.2 82.9 26.6 77.4 28.5 71.7 31.6 59.5 38.8
0 110.7 22.4 105.2 24.5 99.5 27.0 93.7 29.2 87.6 32.3 75.0 39.8
5 130.0 22.9 124.2 24.9 118.2 27.6 112.1 29.9 105.8 33.0 — —
10 — — 145.1 25.7 138.9 28.3 132.7 30.5 126.3 33.9 — —



SLG 120-40 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 59.8 22.8 58.3 25.5 56.3 29.0 53.6 30.6 50.3 33.9 — —
-15 71.6 23.1 69.6 25.6 67.1 29.1 64.0 30.7 60.3 34.0 — —
-10 84.7 23.3 82.4 25.6 79.6 29.2 76.4 30.9 72.5 34.2 63.4 41.7
-5 99.1 23.3 96.7 25.9 93.8 29.2 90.5 31.2 86.8 34.3 78.1 42.2
0 114.6 23.4 112.2 26.0 109.3 29.1 106.3 31.5 102.8 34.4 95.0 42.5
5 131.0 23.5 133.7 26.2 130.1 29.4 123.4 31.7 120.3 34.6 — —
10 — — 154.6 27.0 152.1 29.6 147.1 32.5 139.3 34.9 — —



SLG 290-100 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 125.3 51.3 118.2 56.6 110.2 63.7 101.1 64.7 91.0 71.8 — —
-15 154.1 51.9 145.2 56.6 135.3 63.7 124.5 66.0 112.8 73.3 — —
-10 187.4 52.2 176.9 57.2 165.4 64.0 153.2 67.5 140.3 74.8 112.6 91.8
-5 225.2 53.1 213.2 58.4 200.5 64.3 187.2 69.0 173.3 76.4 143.8 93.9
0 267.6 54.3 254.5 59.3 240.7 65.2 226.6 70.5 211.8 78.1 181.3 96.2
5 314.3 55.3 300.2 60.1 285.9 66.7 271.1 72.3 255.9 79.9 — —
10 — — 350.9 62.2 335.9 68.4 320.9 73.8 305.4 81.9 — —



SLG 290-100 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 144.5 55.2 140.9 61.7 136.1 70.2 129.7 74.0 121.6 82.0 — —
-15 173.2 55.8 168.4 62.0 162.2 70.4 154.8 74.3 145.8 82.3 — —
-10 204.9 56.3 199.2 62.0 192.6 70.5 184.7 74.6 175.3 82.6 153.4 100.9
-5 239.6 56.3 233.8 62.5 226.9 70.7 218.8 75.5 209.9 82.9 188.8 102.1
0 277.2 56.6 271.3 62.8 264.3 70.4 257.0 76.1 248.5 83.2 229.6 102.7
5 316.8 56.9 323.3 63.4 314.5 71.1 298.4 76.7 291.0 83.8 — —
10 — — 373.8 65.2 367.9 71.7 355.8 78.5 336.7 84.4 — —



SLG 140-50 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 60.3 24.7 56.9 27.3 53.1 30.7 48.7 31.1 43.8 34.6 — —
-15 74.2 25.0 69.9 27.3 65.1 30.7 60.0 31.8 54.3 35.3 — —
-10 90.2 25.1 85.1 27.5 79.6 30.8 73.7 32.5 67.5 36.0 54.2 44.2
-5 108.4 25.6 102.6 28.1 96.5 31.0 90.1 33.2 83.4 36.8 69.2 45.2
0 128.8 26.1 122.5 28.5 115.8 31.4 109.1 33.9 102.0 37.6 87.3 46.3
5 151.3 26.6 144.5 28.9 137.6 32.1 130.5 34.8 123.2 38.5 — —
10 — — 168.9 29.9 161.7 32.9 154.5 35.5 147.0 39.4 — —



SLG 140-50 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 69.6 26.6 67.8 29.7 65.5 33.8 62.4 35.6 58.5 39.5 — —
-15 83.4 26.8 81.0 29.8 78.1 33.9 74.5 35.8 70.2 39.6 — —
-10 98.6 27.1 95.9 29.8 92.7 33.9 88.9 35.9 84.4 39.8 73.8 48.6
-5 115.3 27.1 112.5 30.1 109.2 34.0 105.3 36.4 101.0 39.9 90.9 49.1
0 133.4 27.3 130.6 30.2 127.2 33.9 123.7 36.6 119.6 40.0 110.5 49.4
5 152.5 27.4 155.6 30.5 151.4 34.2 143.7 36.9 140.1 40.3 — —
10 — — 179.9 31.4 177.1 34.5 171.3 37.8 162.1 40.6 — —



SLG 320-110 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 138.4 56.7 130.6 62.6 121.8 70.4 111.7 71.5 100.6 79.3 — —
-15 170.3 57.4 160.4 62.6 149.6 70.4 137.6 72.9 124.7 81.0 — —
-10 207.1 57.7 195.4 63.2 182.7 70.7 169.3 74.6 155.0 82.7 124.4 101.5
-5 248.8 58.7 235.6 64.5 221.6 71.1 206.8 76.3 191.5 84.4 158.9 103.7
0 295.7 60.0 281.2 65.5 265.9 72.0 250.4 77.9 234.1 86.4 200.4 106.3
5 347.3 61.1 331.8 66.4 316.0 73.7 299.6 79.9 282.8 88.3 — —
10 — — 387.8 68.7 371.2 75.6 354.6 81.5 337.5 90.6 — —



SLG 320 -110 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 159.7 61.0 155.7 68.1 150.4 77.6 143.3 81.8 134.4 90.6 — —
-15 191.4 61.6 186.1 68.5 179.2 77.8 171.1 82.2 161.1 91.0 — —
-10 226.4 62.3 220.2 68.5 212.8 77.9 204.2 82.5 193.7 91.3 169.5 111.5
-5 264.8 62.3 258.4 69.1 250.7 78.1 241.8 83.5 231.9 91.6 208.6 112.8
0 306.3 62.6 299.8 69.4 292.1 77.8 284.0 84.1 274.7 91.9 253.8 113.4
5 350.1 62.9 357.3 70.1 347.5 78.6 329.8 84.8 321.6 92.6 — —
10 — — 413.0 72.0 406.5 79.2 393.2 86.7 372.1 93.2 — —



SLG 190-65 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 84.1 34.1 79.3 37.6 74.0 42.3 67.9 43.0 61.1 47.7 — —
-15 103.4 34.5 97.4 37.6 90.8 42.3 83.6 43.8 75.7 48.7 — —
-10 125.8 34.7 118.7 38.0 111.0 42.5 102.8 44.8 94.1 49.7 75.6 61.0
-5 151.1 35.3 143.1 38.8 134.6 42.7 125.6 45.8 116.3 50.7 96.5 62.4
0 179.6 36.1 170.8 39.4 161.5 43.3 152.1 46.9 142.2 51.9 121.7 63.9
5 211.0 36.7 201.5 39.9 191.9 44.3 182.0 48.0 171.8 53.1 — —
10 — — 235.5 41.3 225.4 45.5 215.4 49.0 205.0 54.4 — —



SLG 190-65 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 94.1 35.5 91.7 39.7 88.6 45.2 84.4 47.7 79.1 52.8 — —
-15 112.7 35.9 109.6 39.9 105.5 45.3 100.8 47.9 94.9 53.0 — —
-10 133.3 36.3 129.7 39.9 125.4 45.4 120.2 48.1 114.1 53.2 99.8 65.0
-5 155.9 36.3 152.2 40.3 147.7 45.5 142.4 48.6 136.6 53.4 122.9 65.7
0 180.4 36.5 176.6 40.5 172.0 45.4 167.3 49.0 161.8 53.6 149.5 66.1
5 206.2 36.7 210.4 40.9 204.7 45.8 194.2 49.4 189.4 54.0 — —
10 — — 243.3 42.0 239.4 46.2 231.6 50.5 219.1 54.3 — —



SLG 350-120 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 152.8 62.6 144.3 69.1 134.5 77.8 123.4 78.9 111.1 87.6 — —
-15 188.1 63.4 177.2 69.1 165.2 77.8 152.0 80.5 137.7 89.5 — —
-10 228.7 63.7 215.8 69.8 201.8 78.1 186.9 82.4 171.2 91.3 137.4 112.1
-5 274.8 64.8 260.2 71.3 244.7 78.5 228.4 84.2 211.5 93.2 175.5 114.6
0 326.6 66.2 310.6 72.4 293.7 79.6 276.5 86.1 258.5 95.4 221.3 117.3
5 383.6 67.5 366.4 73.4 348.9 81.4 330.9 88.2 312.3 97.5 — —
10 — — 428.2 75.9 409.9 83.5 391.6 90.0 372.7 100.0 — —



SLG 350-120 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 176.4 67.3 171.9 75.2 166.1 85.7 158.3 90.4 148.4 100.1 — —
-15 211.3 68.0 205.5 75.6 197.9 85.9 189.0 90.7 177.9 100.4 — —
-10 250.0 68.8 243.2 75.6 235.0 86.0 225.4 91.1 213.9 100.8 187.1 123.1
-5 292.4 68.8 285.3 76.3 276.9 86.2 267.1 92.2 256.1 101.2 230.4 124.6
0 338.3 69.1 331.1 76.7 322.6 85.9 313.6 92.9 303.3 101.5 280.2 125.3
5 386.6 69.5 394.6 77.4 383.8 86.8 364.2 93.6 355.1 102.2 — —
10 — — 456.1 79.6 448.9 87.5 434.2 95.8 410.9 103.0 — —



SLG 210-70 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 89.2 36.5 84.2 40.3 78.5 45.4 72.0 46.1 64.8 51.1 — —
-15 109.7 37.0 103.4 40.3 96.3 45.4 88.7 47.0 80.3 52.2 — —
-10 133.4 37.2 125.9 40.7 117.7 45.6 109.0 48.0 99.8 53.3 80.1 65.4
-5 160.3 37.8 151.8 41.6 142.8 45.8 133.2 49.1 123.4 54.4 102.4 66.8
0 190.5 38.6 181.2 42.2 171.3 46.4 161.3 50.2 150.8 55.6 129.1 68.4
5 223.7 39.4 213.7 42.8 203.5 47.5 193.0 51.5 182.2 56.9 — —
10 — — 249.8 44.2 239.1 48.7 228.4 52.5 217.4 58.3 — —



SLG 210 -70 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 102.9 39.3 100.3 43.9 96.9 50.0 92.3 52.7 86.5 58.4 — —
-15 123.3 39.7 119.9 44.1 115.4 50.1 110.2 52.9 103.8 58.6 — —
-10 145.8 40.1 141.8 44.1 137.1 50.2 131.5 53.1 124.8 58.8 109.2 71.8
-5 170.6 40.1 166.4 44.5 161.5 50.3 155.8 53.8 149.4 59.0 134.4 72.7
0 197.3 40.3 193.1 44.7 188.2 50.1 182.9 54.2 176.9 59.2 163.5 73.1
5 225.5 40.5 230.2 45.2 223.9 50.6 212.4 54.6 207.2 59.6 — —
10 — — 266.1 46.4 261.9 51.0 253.3 55.9 239.7 60.1 — —



SLG 370-130 (R22)
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 159.2 65.3 150.3 72.0 140.1 81.0 128.5 82.2 115.7 91.3 — —
-15 195.9 66.0 184.6 72.0 172.0 81.0 158.3 83.9 143.4 93.2 — —
-10 238.2 66.4 224.8 72.8 210.2 81.4 194.7 85.8 178.3 95.1 143.1 116.7
-5 286.2 67.5 271.0 74.3 254.9 81.8 237.9 87.7 220.3 97.1 182.8 119.3
0 340.2 69.0 323.5 75.4 305.9 82.9 288.0 89.7 269.2 99.3 230.5 122.2
5 399.5 70.3 381.6 76.4 363.5 84.8 344.7 91.9 325.3 101.6 — —
10 — — 446.0 79.0 427.0 87.0 407.9 93.8 388.2 104.2 — —



SLG 370-130 (R22) ECO
Tc 30 35 40 45 50 60
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 183.7 70.1 179.1 78.4 173.0 89.3 164.9 94.1 154.5 104.3 — —
-15 220.1 70.9 214.0 78.8 206.1 89.4 196.8 94.5 185.3 104.6 — —
-10 260.4 71.6 253.3 78.8 244.8 89.6 234.8 94.9 222.8 105.0 194.9 128.3
-5 304.6 71.6 297.2 79.5 288.4 89.8 278.2 96.0 266.8 105.4 240.0 129.8
0 352.4 72.0 344.9 79.9 336.0 89.5 326.7 96.8 315.9 105.8 291.9 130.5
5 402.7 72.4 411.0 80.6 399.8 90.4 379.4 97.5 369.9 106.5 — —
10 — — 475.1 82.9 467.6 91.1 452.3 99.8 428.0 107.3 — —





PRESTATIES SLG R404A

SLG 100-35 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 49.2 17.4 43.5 20.4 41.2 22.6 37.4 24.9 32.6 27.8 28.0 30.5
-15 61.5 17.8 53.5 20.6 51.8 23.1 46.2 25.3 40.2 28.6 35.8 31.1
-10 76.0 18.2 66.8 21.2 62.5 23.6 56.8 25.8 51.2 29.2 45.7 31.9
-5 90.5 18.6 80.7 21.9 75.3 24.2 69.3 26.5 62.8 29.7 55.6 32.5
0 — — 96.9 22.7 91.4 24.8 84.2 27.0 76.7 30.2 71.0 33.2
5 — — 116.5 23.5 107.2 25.3 100.5 27.8 92.6 30.5 83.1 33.7



SLG 100-35 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 60.4 18.6 59.0 22.7 56.7 25.4 53.5 28.6 48.9 31.5 47.6 36.2
-15 72.2 18.8 69.5 22.9 66.7 25.6 62.9 28.8 58.2 31.7 57.2 36.5
-10 85.3 19.1 81.3 23.2 78.1 25.7 73.9 29.0 68.9 31.8 67.4 36.6
-5 99.5 19.2 94.3 23.5 90.8 25.9 86.4 29.2 81.1 32.2 77.2 36.8
0 — — 108.5 23.7 104.5 26.1 100.3 29.3 94.6 32.5 90.6 36.7
5 — — 123.3 23.8 119.1 26.2 114.7 29.3 109.1 32.6 103.2 36.9



SLG 230-80 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 116.6 39.6 103.1 46.4 97.6 51.4 88.6 56.6 77.3 63.2 66.3 69.4
-15 145.8 40.5 126.8 46.8 122.8 52.5 109.5 57.5 95.3 65.0 84.9 70.7
-10 180.1 41.4 158.3 48.2 148.1 53.7 134.6 58.7 121.3 66.4 108.3 72.5
-5 214.5 42.3 191.3 49.8 178.5 55.0 164.2 60.3 148.8 67.5 131.8 73.9
0 — — 229.7 51.6 216.6 56.4 199.6 61.4 181.8 68.7 168.4 75.5
5 — — 276.1 53.4 254.1 57.5 238.2 63.2 219.5 69.4 196.9 76.6



SLG 230-80 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 143.2 42.3 139.7 51.6 134.4 57.8 126.7 65.0 116.0 71.6 112.8 82.3
-15 171.1 42.8 164.6 52.1 158.0 58.2 149.2 65.5 137.9 72.1 135.6 83.0
-10 202.2 43.4 192.7 52.8 185.2 58.4 175.2 66.0 163.3 72.3 159.7 83.2
-5 235.8 43.7 223.5 53.4 215.2 58.9 204.8 66.4 192.2 73.2 183.0 83.7
0 — — 257.1 53.9 247.5 59.4 237.7 66.6 224.1 73.9 214.7 83.5
5 — — 292.3 54.1 282.4 59.6 271.8 66.6 258.6 74.1 244.7 83.9



SLG 120-40 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 60.5 21.4 53.5 25.1 50.7 27.8 46.0 30.6 40.1 34.2 34.4 37.5
-15 75.6 21.9 65.8 25.3 63.7 28.4 56.8 31.1 49.4 35.2 44.1 38.3
-10 93.5 22.4 82.2 26.1 76.9 29.0 69.9 31.7 63.0 35.9 56.2 39.2
-5 111.3 22.9 99.3 26.9 92.6 29.8 85.2 32.6 77.2 36.5 68.4 40.0
0 — — 119.2 27.9 112.4 30.5 103.6 33.2 94.3 37.1 87.4 40.8
5 — — 143.3 28.9 131.9 31.1 123.6 34.2 113.9 37.5 102.2 41.5



SLG 120-40 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 74.3 22.9 72.5 27.9 69.8 31.2 65.8 35.2 60.2 38.7 58.5 44.5
-15 88.8 23.1 85.4 28.2 82.0 31.5 77.4 35.4 71.6 39.0 70.4 44.9
-10 104.9 23.5 100.0 28.5 96.1 31.6 90.9 35.7 84.7 39.1 82.9 45.0
-5 122.4 23.6 116.0 28.9 111.7 31.9 106.3 35.9 99.7 39.6 95.0 45.3
0 — — 133.5 29.2 128.5 32.1 123.3 36.0 116.3 40.0 111.4 45.1
5 — — 151.7 29.3 146.5 32.2 141.0 36.0 134.2 40.1 127.0 45.4



SLG 290-100 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 147.0 49.9 130.0 58.5 123.1 64.8 111.8 71.4 97.4 79.7 83.6 87.5
-15 183.8 51.0 159.9 59.1 154.8 66.2 138.1 72.5 120.1 82.0 107.0 89.2
-10 227.1 52.2 199.6 60.8 186.8 67.7 169.7 74.0 153.0 83.7 136.5 91.5
-5 270.4 53.3 241.2 62.8 225.0 69.4 207.1 76.0 187.7 85.2 166.1 93.2
0 — — 289.6 65.1 273.1 71.1 251.6 77.4 229.2 86.6 212.3 95.2
5 — — 348.1 67.4 320.3 72.5 300.3 79.7 276.7 87.5 248.3 96.6



SLG 290-100 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 180.5 53.3 176.2 65.1 169.5 72.8 159.7 82.0 146.2 90.3 142.2 103.8
-15 215.7 53.9 207.6 65.7 199.3 73.4 188.1 82.6 173.9 90.9 170.9 104.7
-10 254.9 54.8 243.0 66.5 233.5 73.7 220.9 83.2 205.9 91.2 201.4 105.0
-5 297.3 55.1 281.8 67.4 271.3 74.3 258.2 83.7 242.3 92.3 230.7 105.5
0 — — 324.2 68.0 312.1 74.8 299.7 84.0 282.6 93.2 270.7 105.2
5 — — 368.5 68.2 356.0 75.1 342.6 84.0 326.1 93.5 308.5 105.8



SLG 140-50 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 70.8 25.1 62.6 29.4 59.3 32.5 53.9 35.9 46.9 40.0 40.3 43.9
-15 88.6 25.6 77.0 29.7 74.6 33.3 66.5 36.4 57.9 41.2 51.6 44.8
-10 109.4 26.2 96.2 30.5 90.0 34.0 81.8 37.2 73.7 42.0 65.8 45.9
-5 130.3 26.8 116.2 31.5 108.4 34.8 99.8 38.2 90.4 42.8 80.1 46.8
0 — — 139.5 32.7 131.6 35.7 121.2 38.9 110.4 43.5 102.3 47.8
5 — — 167.8 33.8 154.4 36.4 144.7 40.0 133.3 43.9 119.7 48.5



SLG 140-50 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 87.0 26.8 84.9 32.7 81.7 36.6 77.0 41.2 70.5 45.4 68.5 52.1
-15 103.9 27.1 100.0 33.0 96.0 36.9 90.6 41.5 83.8 45.6 82.4 52.6
-10 122.9 27.5 117.1 33.4 112.5 37.0 106.5 41.8 99.2 45.8 97.1 52.7
-5 143.3 27.6 135.8 33.8 130.8 37.3 124.4 42.0 116.8 46.4 111.2 53.0
0 — — 156.2 34.1 150.4 37.6 144.4 42.2 136.2 46.8 130.5 52.8
5 — — 177.6 34.3 171.6 37.7 165.1 42.2 157.1 46.9 148.7 53.1



SLG 320-110 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 162.2 55.1 143.4 64.5 135.9 71.5 123.3 78.8 107.5 88.0 92.3 96.5
-15 202.8 56.3 176.4 65.2 170.8 73.1 152.3 80.1 132.6 90.5 118.1 98.4
-10 250.6 57.6 220.3 67.1 206.1 74.7 187.3 81.6 168.8 92.4 150.6 100.9
-5 298.4 58.9 266.1 69.3 248.3 76.6 228.5 83.9 207.1 94.0 183.3 102.8
0 — — 319.5 71.8 301.4 78.5 277.6 85.4 252.9 95.6 234.3 105.1
5 — — 384.1 74.4 353.5 80.1 331.4 88.0 305.3 96.5 274.0 106.6



SLG 320-110 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 199.2 58.9 194.4 71.8 187.0 80.4 176.3 90.5 161.4 99.7 157.0 114.5
-15 238.0 59.5 229.1 72.5 219.9 81.0 207.5 91.1 191.9 100.3 188.6 115.5
-10 281.3 60.4 268.1 73.4 257.6 81.3 243.8 91.8 227.2 100.6 222.2 115.8
-5 328.1 60.8 310.9 74.4 299.4 82.0 284.9 92.4 267.4 101.9 254.6 116.4
0 — — 357.8 75.0 344.4 82.6 330.7 92.7 311.8 102.8 298.7 116.1
5 — — 406.6 75.3 392.9 82.9 378.1 92.7 359.8 103.2 340.4 116.8



SLG 190-65 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 97.4 33.1 86.1 38.8 81.6 42.9 74.1 47.3 64.5 52.8 55.4 58.0
-15 121.8 33.8 105.9 39.1 102.6 43.9 91.5 48.1 79.6 54.3 70.9 59.1
-10 150.5 34.6 132.3 40.3 123.8 44.8 112.5 49.0 101.4 55.5 90.4 60.6
-5 179.2 35.3 159.8 41.6 149.1 46.0 137.2 50.4 124.3 56.4 110.1 61.8
0 — — 191.9 43.1 181.0 47.1 166.7 51.3 151.9 57.4 140.7 63.1
5 — — 230.7 44.7 212.3 48.1 199.0 52.8 183.3 58.0 164.5 64.0



SLG 190-65 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 119.6 35.3 116.7 43.1 112.3 48.3 105.8 54.3 96.9 59.9 94.2 68.8
-15 142.9 35.7 137.5 43.5 132.0 48.6 124.6 54.7 115.2 60.2 113.3 69.4
-10 168.9 36.3 161.0 44.1 154.7 48.8 146.4 55.1 136.4 60.4 133.5 69.5
-5 197.0 36.5 186.7 44.7 179.8 49.2 171.1 55.5 160.6 61.2 152.9 69.9
0 — — 214.8 45.0 206.8 49.6 198.6 55.7 187.2 61.8 179.4 69.7
5 — — 244.2 45.2 235.9 49.8 227.0 55.7 216.1 61.9 204.4 70.1



SLG 350-120 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 177.4 60.2 156.9 70.6 148.6 78.2 134.9 86.2 117.6 96.2 100.9 105.6
-15 221.8 61.6 192.9 71.3 186.8 79.9 166.6 87.6 145.0 99.0 129.2 107.6
-10 274.1 63.0 240.9 73.4 225.4 81.7 204.9 89.3 184.7 101.1 164.7 110.4
-5 326.4 64.4 291.0 75.8 271.6 83.8 249.9 91.7 226.5 102.8 200.5 112.5
0 — — 349.5 78.6 329.6 85.8 303.7 93.4 276.6 104.5 256.2 114.9
5 — — 420.2 81.3 386.6 87.6 362.5 96.2 334.0 105.6 299.7 116.6



SLG 350-120 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 217.9 64.4 212.6 78.6 204.6 87.9 192.8 99.0 176.5 109.0 171.7 125.3
-15 260.3 65.1 250.5 79.3 240.5 88.6 227.0 99.7 209.9 109.7 206.3 126.3
-10 307.7 66.1 293.3 80.3 281.8 88.9 266.6 100.4 248.5 110.1 243.1 126.7
-5 358.8 66.4 340.1 81.3 327.5 89.6 311.6 101.1 292.4 111.4 278.4 127.4
0 — — 391.3 82.0 376.7 90.3 361.7 101.4 341.1 112.5 326.8 127.0
5 — — 444.7 82.4 429.7 90.7 413.5 101.4 393.6 112.8 372.3 127.7



SLG 210-70 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 103.3 35.1 91.4 41.1 86.5 45.5 78.5 50.2 68.5 56.0 58.8 61.5
-15 129.2 35.9 112.4 41.5 108.8 46.6 97.0 51.0 84.4 57.6 75.2 62.7
-10 159.6 36.7 140.3 42.7 131.3 47.6 119.3 52.0 107.5 58.8 95.9 64.3
-5 190.1 37.5 169.5 44.1 158.1 48.8 145.5 53.4 131.9 59.9 116.8 65.5
0 — — 203.5 45.7 191.9 50.0 176.8 54.4 161.1 60.9 149.2 66.9
5 — — 244.7 47.4 225.1 51.0 211.1 56.0 194.5 61.5 174.5 67.9



SLG 210-70 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 126.9 37.5 123.8 45.7 119.1 51.2 112.3 57.6 102.8 63.5 100.0 72.9
-15 151.6 37.9 145.9 46.1 140.0 51.6 132.2 58.0 122.2 63.9 120.1 73.6
-10 179.2 38.5 170.8 46.8 164.1 51.8 155.2 58.4 144.7 64.1 141.5 73.8
-5 208.9 38.7 198.0 47.4 190.7 52.2 181.5 58.8 170.3 64.9 162.1 74.2
0 — — 227.8 47.8 219.3 52.6 210.6 59.0 198.6 65.5 190.3 74.0
5 — — 259.0 48.0 250.2 52.8 240.8 59.0 229.2 65.7 216.8 74.4



SLG 370-130 (R404A)
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 187.6 63.7 165.8 74.6 157.1 82.7 142.6 91.1 124.3 101.7 106.7 111.6
-15 234.5 65.1 204.0 75.4 197.5 84.5 176.1 92.6 153.3 104.6 136.6 113.8
-10 289.8 66.6 254.7 77.6 238.3 86.3 216.6 94.4 195.2 106.8 174.2 116.7
-5 345.0 68.0 307.7 80.1 287.1 88.5 264.2 97.0 239.4 108.7 212.0 118.9
0 — — 369.4 83.0 348.5 90.7 321.0 98.8 292.4 110.5 270.9 121.5
5 — — 444.2 86.0 408.7 92.6 383.2 101.7 353.0 111.6 316.8 123.3



SLG 370-130 (R404A) ECO
Tc 20 30 35 40 45 50
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-20 230.3 68.0 224.8 83.0 216.2 92.9 203.8 104.6 186.6 115.2 181.5 132.4
-15 275.2 68.8 264.9 83.8 254.2 93.7 240.0 105.4 221.9 116.0 218.1 133.5
-10 325.3 69.9 310.0 84.9 297.9 94.0 281.9 106.1 262.7 116.3 257.0 133.9
-5 379.4 70.2 359.5 86.0 346.2 94.8 329.4 106.8 309.1 117.8 294.3 134.6
0 — — 413.7 86.7 398.2 95.5 382.3 107.2 360.5 118.9 345.4 134.3
5 — — 470.2 87.1 454.2 95.9 437.2 107.2 416.1 119.3 393.6 135.0









De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 3De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 4De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 5De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 6De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 7De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 8De Verplaatsing van de de Koelingscompressor 380V 145m3/H van de R22r404a Schroef 9



















Markeringen:

Schroeftype Compressor

de koele compressor van de ruimtekoeling

koelingscompressor voor koude ruimte
